Main saw power: 16.5kw
Auxiliary saw motor power: 2.2kw
Maximum sawing length: 3300mm
Maximum sawing thickness: 100mm
Maximum sawing width: 3300mm
Minimum board size for horizontal cutting: 5mm
Minimum vertical cutting board size: 40mm
Positioning method: automatic
Servo positioning accuracy: 0.02mm
Sawing accuracy: ± 0.1mm
Main saw blade outer diameter: 360mm-400mm
Main saw blade inner diameter: 75mm
Main saw speed/frequency converter speed regulation: 4800r/min
Traction motor power (rack drive): 2.0KW
Mechanical arm servo motor: 2.0kw
Side mounted motor: 0.55kw
Sawing speed: 0-100 meters per minute
Return speed: 120 meters per minute
High pressure fan: 4KW
Air pressure: 0.6-0.8MPA
Specification of air flotation table: 1750 * 540mm
Machine tool dimensions: 5710x6650x1900mm
Total power: 27KW
Display screen: 19 inches

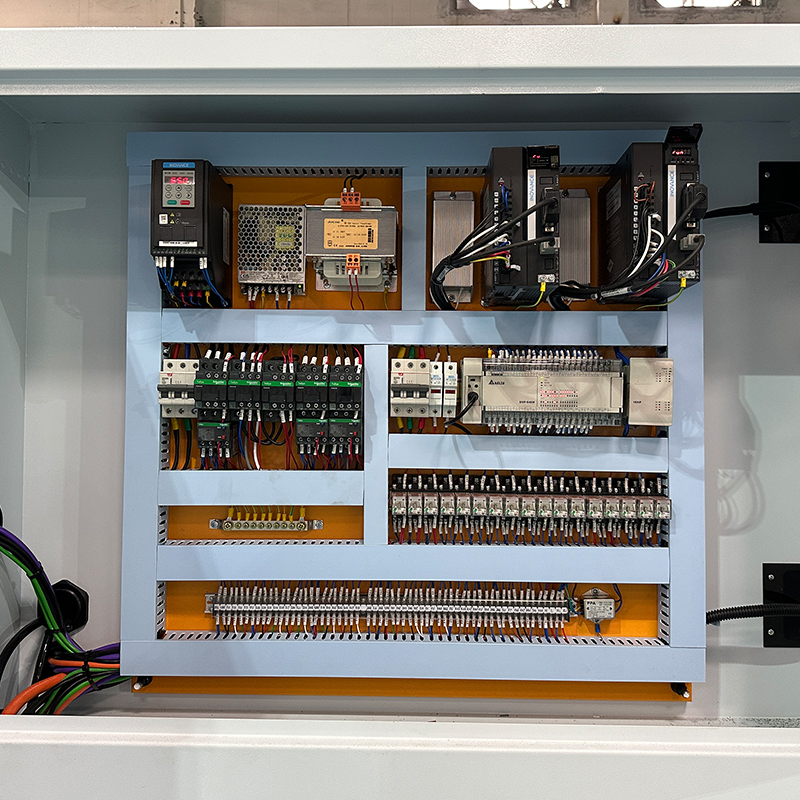

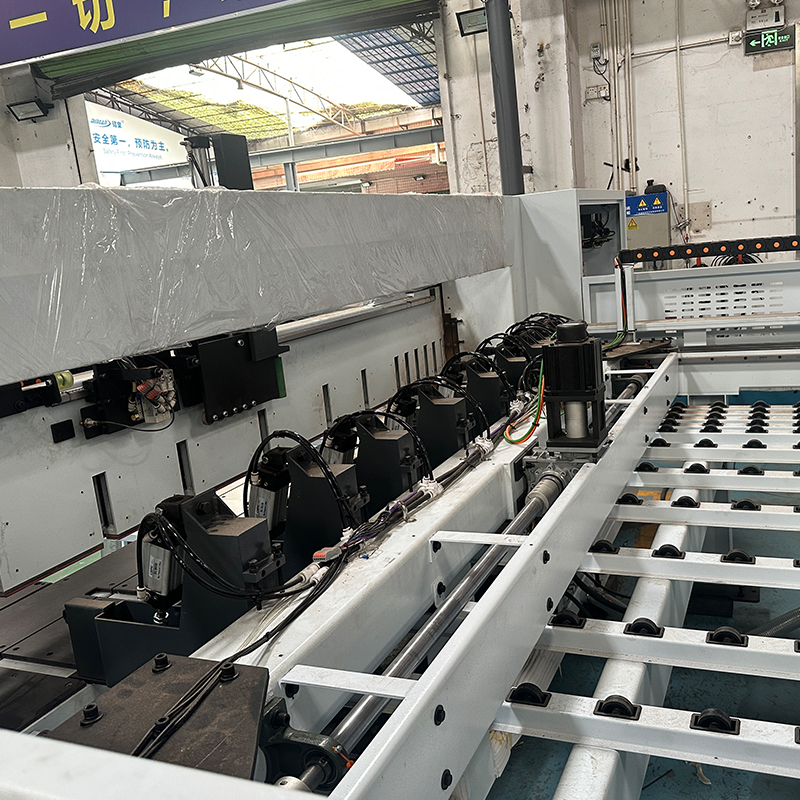

The composition and advantages of electronic CNC panel saw: CNC panel saw is mainly composed of saw head and feed platform. The saw head is mainly composed of a saw blade and a control system computer. The feeding platform is mainly composed of servo motors, reducers, pressure cylinders and other main components. The equipment control system adopts mechatronics integration and digital filling method, which is easy to operate and convenient for workers to learn. Novices can be fully employed through simple training, saving high labor and training costs for enterprises, making them stand out in the increasingly fierce competitive environment.
