Sawing length: 2700mm
Sawing thickness: 85mm
Main saw blade diameter: Ø 360mm
Main saw shaft diameter: Ø 30mm
Main saw shaft speed/frequency converter speed regulation: 4800rpm
Groove saw blade diameter: Ø 180mm
Groove saw shaft diameter: Ø 25.4mm
Sawing shaft speed/frequency converter speed regulation: 6900rpm
Saw seat forward speed: 100m/min
Saw seat retreat speed: 150m/min
Main saw motor: 16.5kw
Saw seat drive motor: 1.5kw
High voltage blower motor: 4kw
Total power: 22kw
Automatic feeding speed: 100m/min

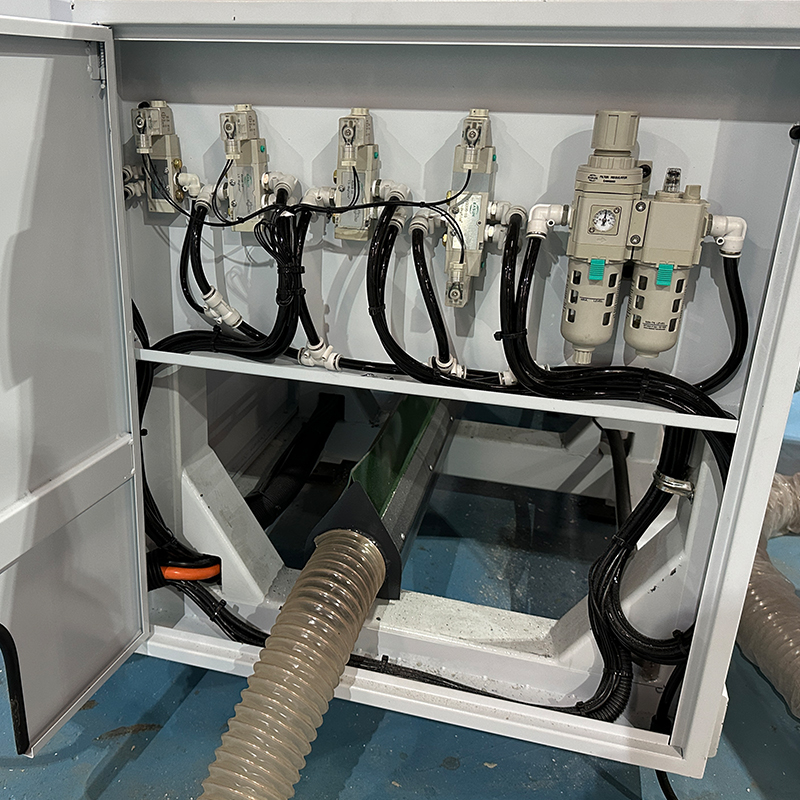

Using air pressure: 5-7kg/cm ²
Workbench height above ground: 950mm
Machine dimensions (length * width * height): 5030 * 3500 * 1800mm

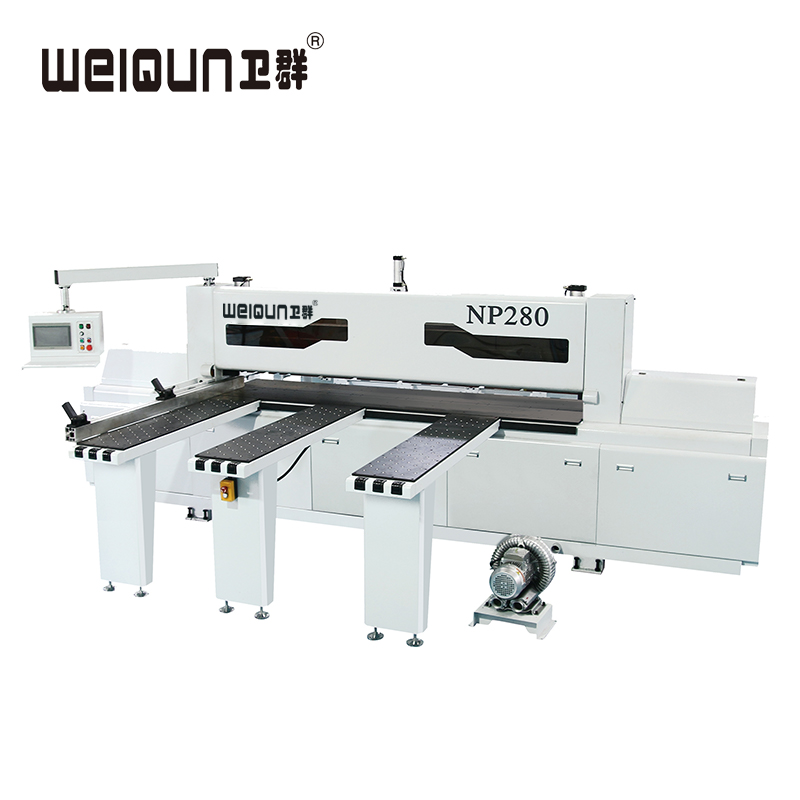

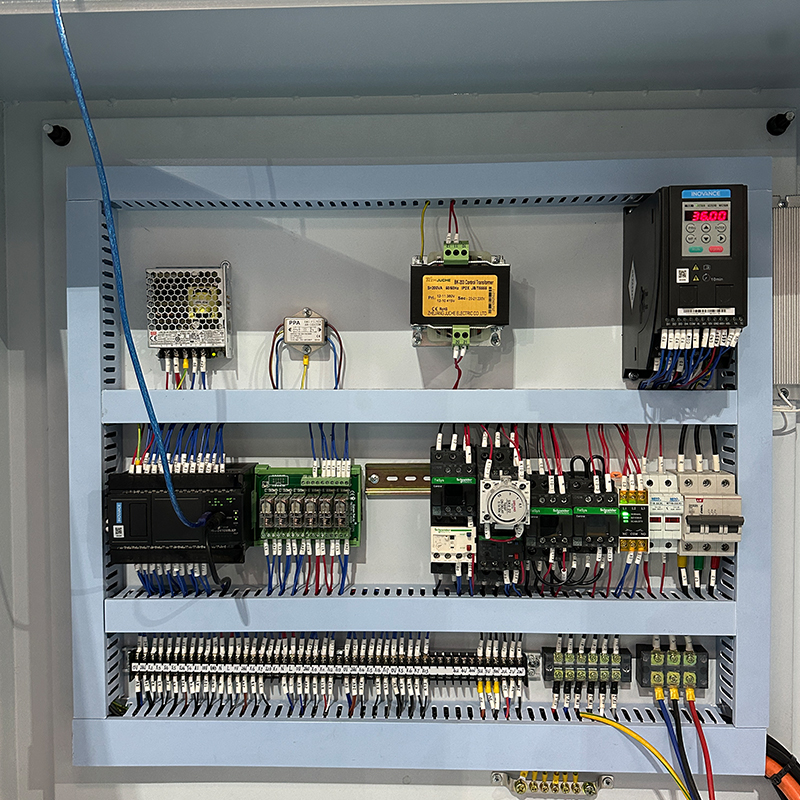

The main saw of the CNC reciprocating saw adopts Taiwan Samsung multi groove belt and gear rack combination transmission structure; The electrical appliances, toggle components, and key parts used are all made of internationally renowned brand products to ensure the accuracy and reliability of the products; The cutting speed of the main machine is fast, and it can achieve infinite adjustment according to the thickness of the cutting board.
