Computer industrial control computer: including
Printer: optional
Optimization software: optional
Side leaning: optional
Sawing length/width: 3300mm
Maximum sawing thickness: 120mm

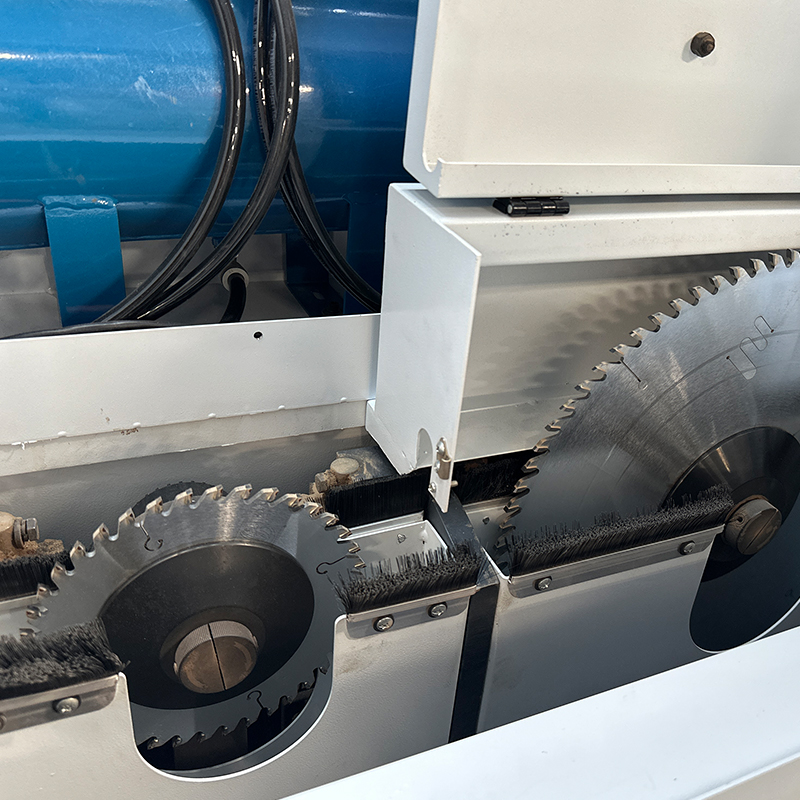

Main saw blade diameter: Φ 400-450mm
Main saw shaft diameter: Φ 75mm
Secondary saw blade diameter: Φ 200mm
Secondary saw shaft diameter: Φ 50mm
Main saw speed/frequency converter speed regulation: 4100r/min
Secondary saw speed/frequency converter speed regulation: 6100r/min
Saw seat forward speed: 100m/min (adjustable)
Saw seat retreat speed: 120m/min (adjustable)
Main saw motor: 18.5kw
Auxiliary saw motor: 2.2kw
Saw seat drive motor: 2.0kw (Envision servo)

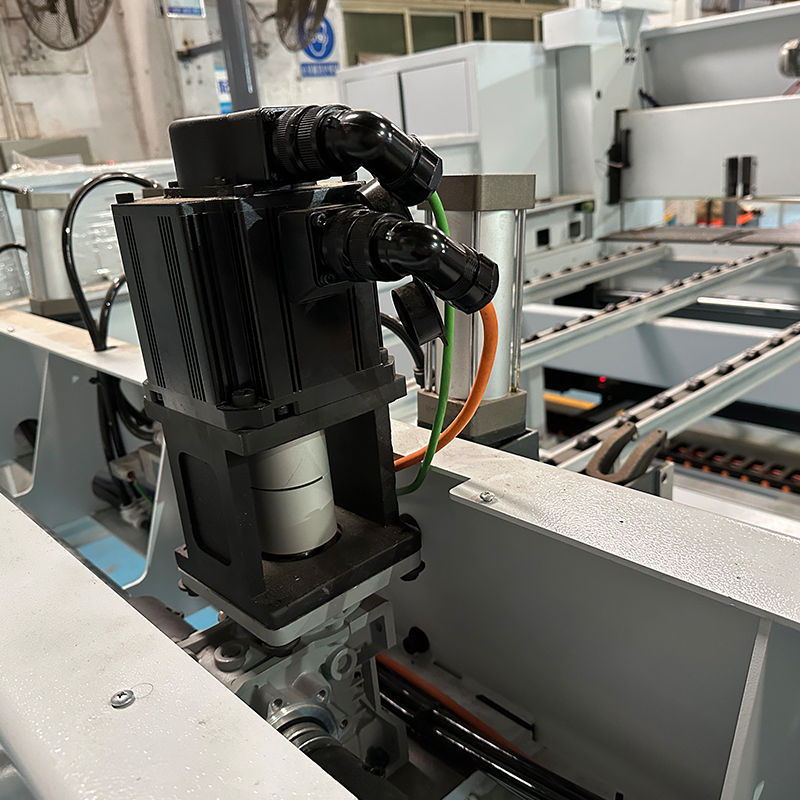

Feeding positioning motor: 2.0kw (Infineon servo)
High pressure fan (2): 4kw, 2.2kw
Total power: 31kw
Automatic feeding speed: 100/min (adjustable)
Using air pressure: 5-8kg/cm ²
Workbench ground clearance: 950mm

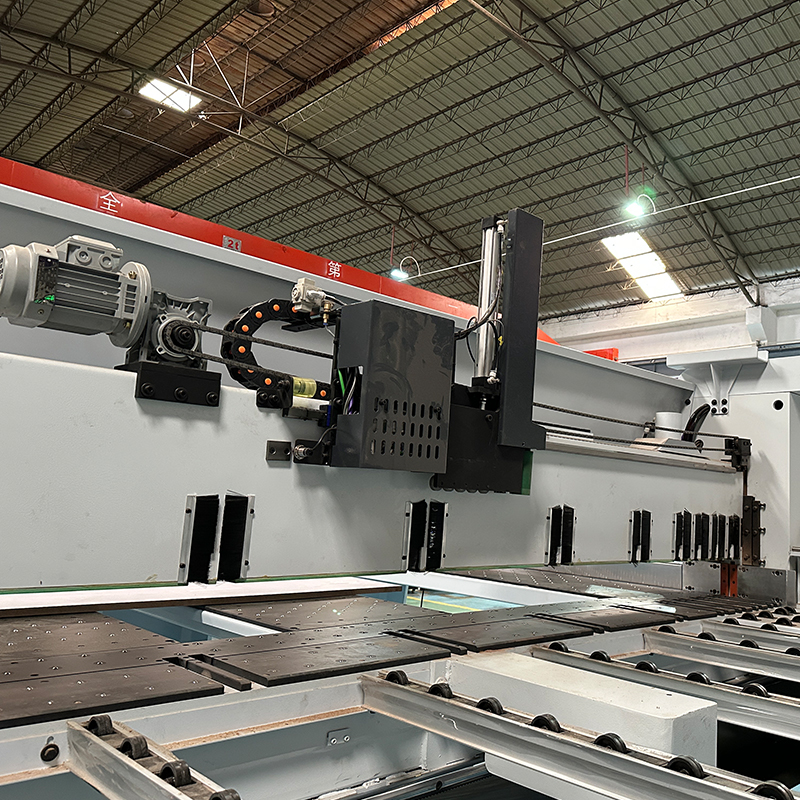

Mechanical Claw Hands: 9 (Double Claw)
Machine appearance: 5600 * 6800 * 1900mm

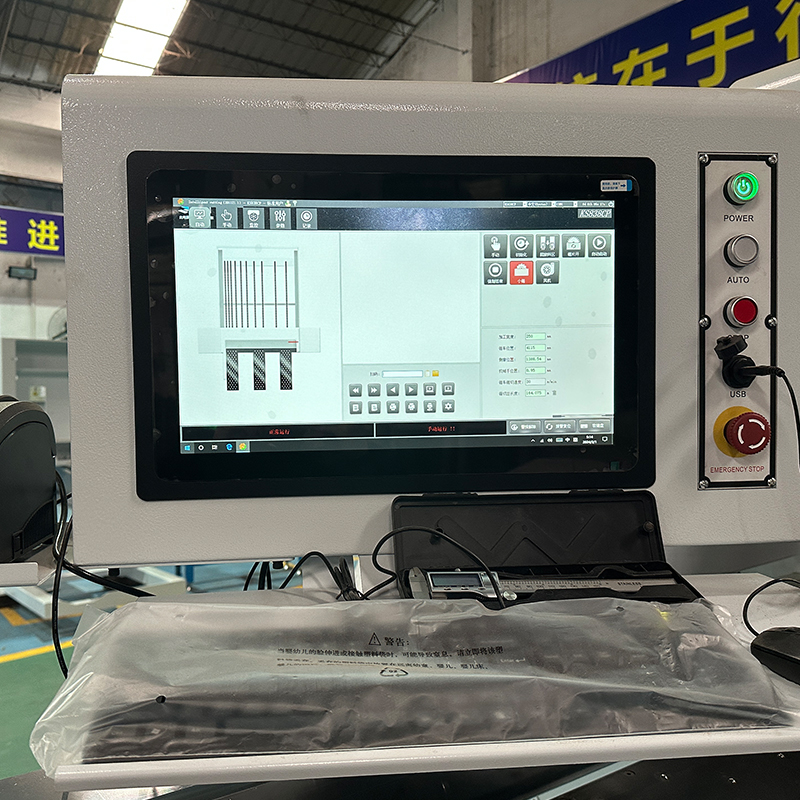

The electronic panel saw integrates a fully automatic touch screen control system. Operators only need to input cutting size, angle and other parameters on the touch screen, and the machine will automatically perform the cutting task. This automated operation mode significantly reduces manual intervention and improves cutting accuracy and efficiency.
