Main saw power: 16.5kw
Auxiliary saw motor power: 2.2kw
Maximum sawing length: 3800mm
Maximum sawing thickness: 100mm
Maximum sawing width: 3800mm
Minimum board size for horizontal cutting: 5mm
Minimum vertical cutting board size: 40mm
Positioning method: automatic
Servo positioning accuracy: 0.02mm
Sawing accuracy: ± 0.1mm
Main saw blade outer diameter: 360mm-400mm
Main saw blade inner diameter: 75mm
Main saw speed/frequency converter speed regulation: 4800r/min
Traction motor power (rack drive): 2.0KW
Mechanical arm servo motor: 2.0kw
Side mounted motor: 0.55kw
Sawing speed: 0-100 meters per minute
Return speed: 120 meters per minute
High pressure fan: 4KW 2.2KW (two)
Air pressure: 0.6-0.8MPA
Specification of air flotation table: 1750 * 540mm
Machine tool dimensions: 6300x7500x1900mm
Total power: 29KW
Display screen: 19 inches

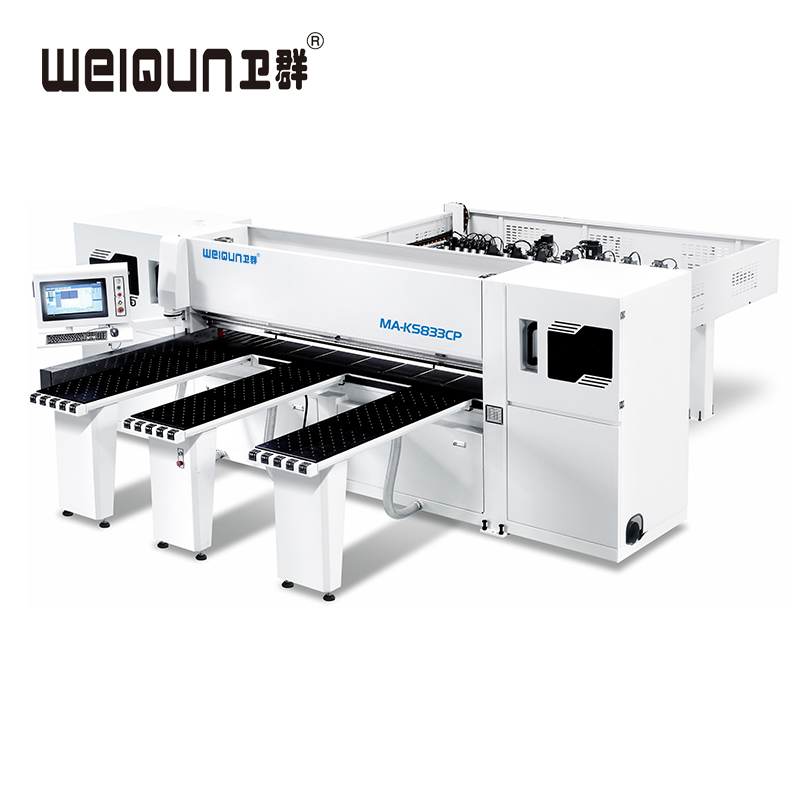

Electronic panel saw is a CNC cutting machine controlled by a fully automatic touch screen. After workers input the required cutting data through the touch screen, the machine automatically runs to achieve precise cutting of the board. It belongs to the human-machine integrated operation equipment. This equipment is mainly used for the sheet cutting process in furniture manufacturing plants, and has the characteristics of high efficiency and precision.
