Main and auxiliary saw power: 16.5kw
Maximum sawing length: 2800mm
Maximum sawing thickness: 85mm
Maximum sawing width: 2800mm
Minimum board size for horizontal cutting: 5mm
Minimum vertical cutting board size: 40mm
Positioning method: automatic
Servo positioning accuracy: 0.02mm
Sawing accuracy: ± 0.2mm
Main saw blade outer diameter: 360mm
Main saw blade inner diameter: 30mm
Main saw speed: 4800r/min
Sawing servo motor: 2KW
Mechanical arm servo motor: 2kw
Sawing speed: 0-100 meters per minute
Return speed: 120 meters per minute
High pressure fan: 4KW
Air pressure: 0.6-0.8MPA
Specification of air flotation table: 1750 * 540mm
Machine tool dimensions: 5030x5800x1900m
Total power: 24.5KW

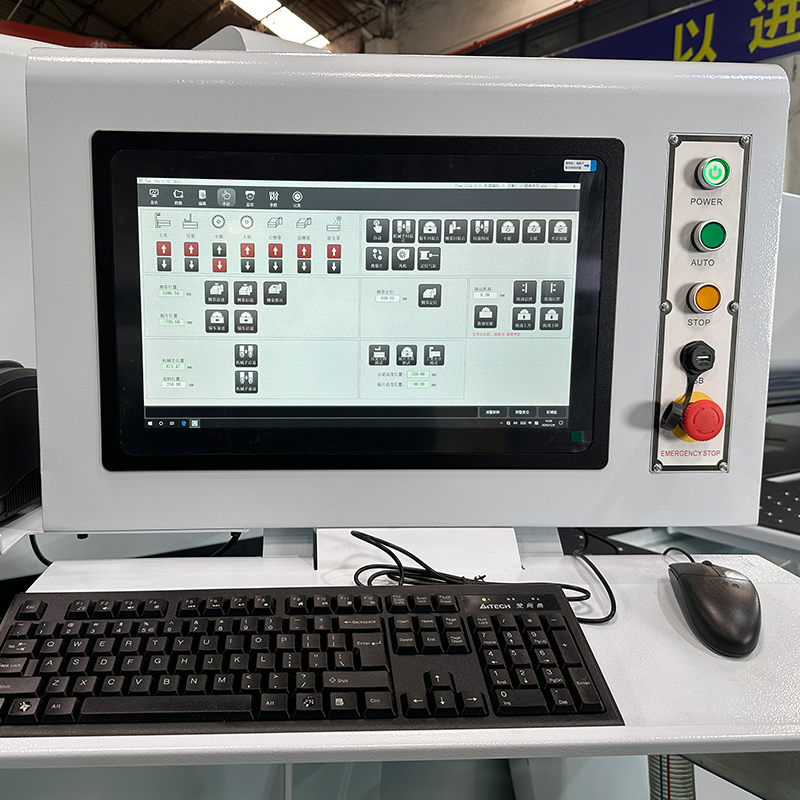

Display screen: 19 inches
Retaining the flexibility of traditional electronic cutting saws in randomly manually arranging cutting data, and expanding intelligent data import
Wireless remote control start stop operation, remote monitoring and other features have been added, including order design, order splitting optimization, surplus material management, and scheduling
Practical functions such as version optimization and barcode printing. Simultaneously open docking for all software ports, such as Yuanfang, Huaguang CV、 1010, Weilun, Haixun, 3D Home, Yunxi, Shangchuan and other design software, as well as support Microsoft Excel handmade material lists, have powerful optimization layout programming functions, and can construct practical operations that simulate real-world problems. When workers operate the equipment, they only need to place the workpiece according to the prompts on the computer interface, and the cutting size data is intelligently refreshed by the computer (scanning code) to achieve one click operation. Generally, it only takes 2 hours of training to start working.
