Main and auxiliary saw power: 16.5kw
Maximum sawing length: 4200mm
Maximum sawing thickness: 85mm
Maximum sawing width: 4200mm
Minimum board size for horizontal cutting: 5mm
Minimum vertical cutting board size: 40mm
Positioning method: automatic
Servo positioning accuracy: 0.02mm
Sawing accuracy: ± 0.2mm
Main saw blade outer diameter: 360mm
Main saw blade inner diameter: 30mm
Main saw speed: 4800r/min

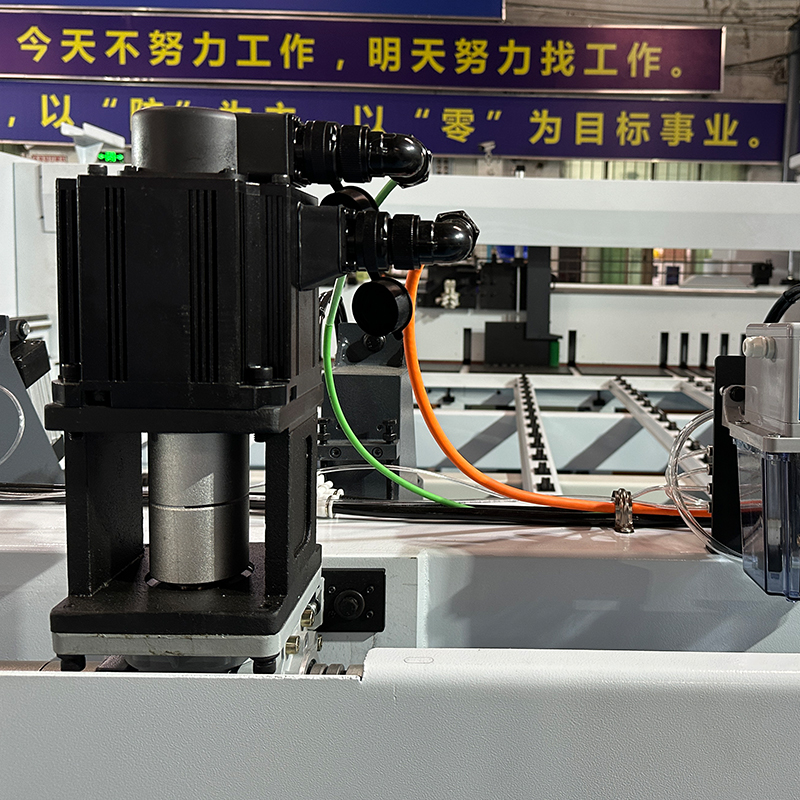

Sawing servo motor: 2KW

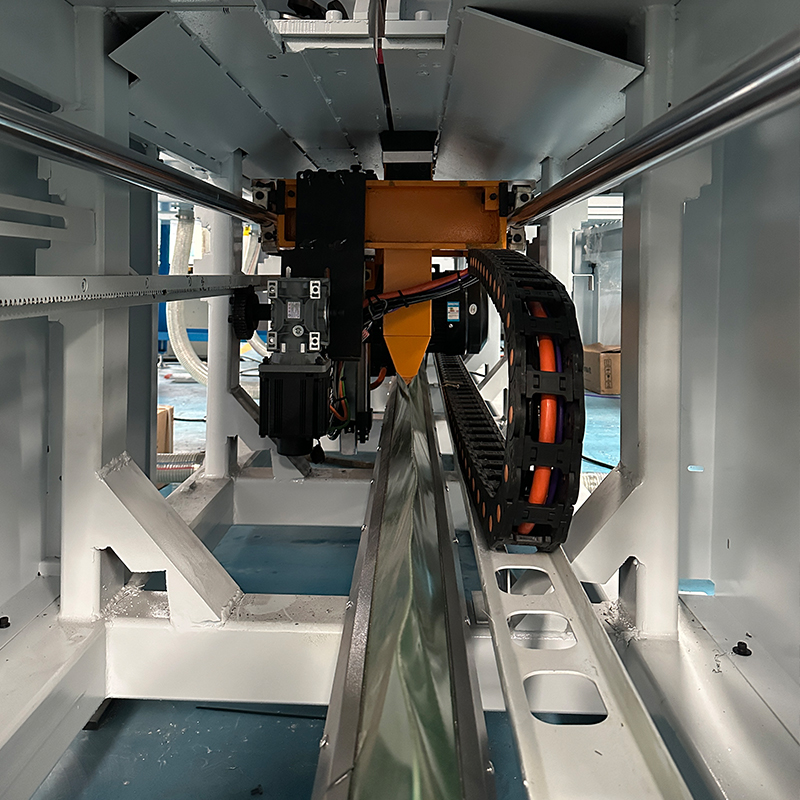

Mechanical arm servo motor: 2kw
Sawing speed: 0-100 meters per minute
Return speed: 120 meters per minute
High pressure fan: 4KW 2.2KW (two)
Air pressure: 0.6-0.8MPA
Specification of air flotation table: 1750 * 540m
Machine tool dimensions: 6700x7900x1900m
Total power: 26.7KW
Display screen: 19 inches
When using an electronic panel saw, the following precautions should be taken:
1. Operators need to undergo professional training, familiarize themselves with equipment performance and operating procedures to ensure safety and normal operation of the equipment.
Before use, it is necessary to inspect and maintain the equipment to ensure its stability and accuracy. At the same time, regular maintenance and repair of equipment can extend its service life.
During the cutting process, it is important to observe the operation of the equipment and the cutting effect. If any abnormal situation occurs, the machine should be stopped in a timely manner for inspection and troubleshooting.
4. During use, pay attention to keeping the equipment clean and dry, and avoid the influence of moisture and dirt on the equipment. At the same time, it is necessary to regularly clean and maintain the equipment to ensure its normal operation and effectiveness.
